Airflow is a Python based workflow tool published by Apache to allow you to create, schedule and monitor workflows programmatically. It's a common tool used in modern data engineering practice. This article show you how to install Airflow on your Windows 10 or 11 systems via WSL (Windows Subsystem for Linux).
Prerequisites
- WSL - Follow this article to enable it if you have not done that already.
- Python - from Airflow 2.0, Python 3.6+ is required. Follow Install Python 3.9.1 on WSL to install Python 3.9.1 on WSL.
Install Airflow on WSL
Now we can install Airflow in WSL.
Create AIRFLOW\_HOME variable
Add the following line to ~/.bashrc file to setup the variable:
export AIRFLOW_HOME=~/airflow
And then source it:
source ~/.bashrc
Install Airflow package
Run the following commands to install it:
AIRFLOW_VERSION=2.2.3PYTHON_VERSION="$(python --version | cut -d " " -f 2 | cut -d "." -f 1-2)"CONSTRAINT_URL="https://raw.githubusercontent.com/apache/airflow/constraints-${AIRFLOW_VERSION}/constraints-${PYTHON_VERSION}.txt"pip3 install "apache-airflow==${AIRFLOW_VERSION}" --constraint "${CONSTRAINT_URL}"
If you notice warning message like the following:
WARNING: The script airflow is installed in '/home/***/.local/bin' which is not on PATH.
Add the path to PATH environment variable so that you can use commands like airflow. You can do this by editing~/.brashrc.
export PATH=$PATH:~/.local/bin
Remember to source the new settings:
source ~/.bashrc
Initialize database
Run the following command to initialize the database:
airflow db init

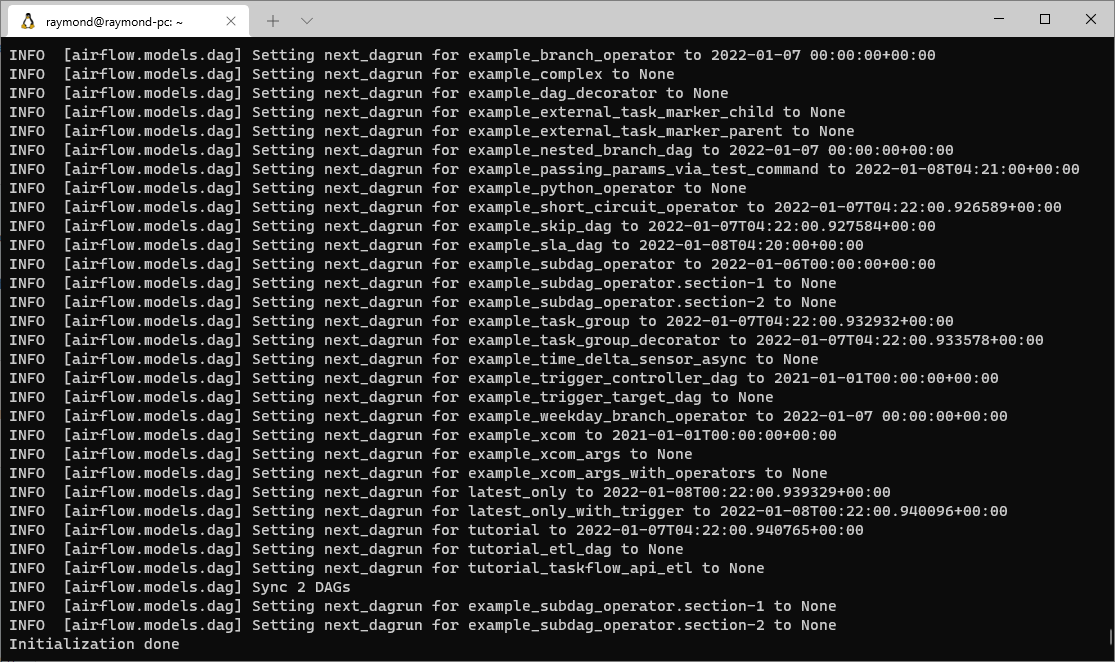

This command will create the AIRFLOW_HOME folder with configuration file and the default SQLite database for storing data. Check out file $AIRFLOW_HOME/airflow.cfg for all the configuration items.
Create an admin user
Now let's create an admin account using the following command:
airflow users create \ --username admin \ --firstname Raymond \ --lastname Tang \ --role Admin \ --email ***@app.kontext.tech
You need to input a password for the user:
Start webserver service
Now you can run the following command to start the webserver service:
airflow webserver --port 8080
Remember to change the port number to a different one if it is already used by other services in your system.
Open the website in browser: http://localhost:8080/

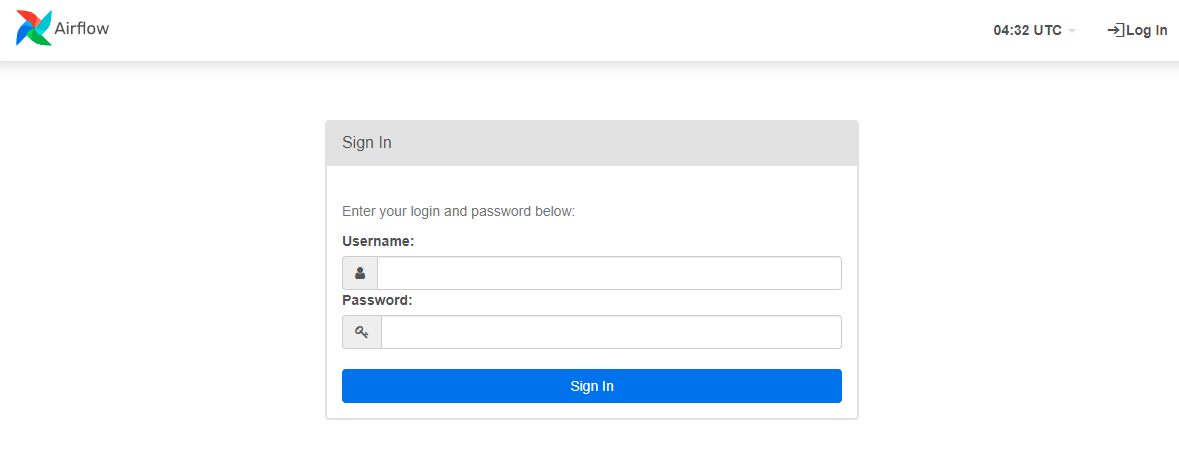

The login screen looks like the following screenshot:
Input these details to sign in:
- Username: admin
- Password: the password you input previously when setting up.

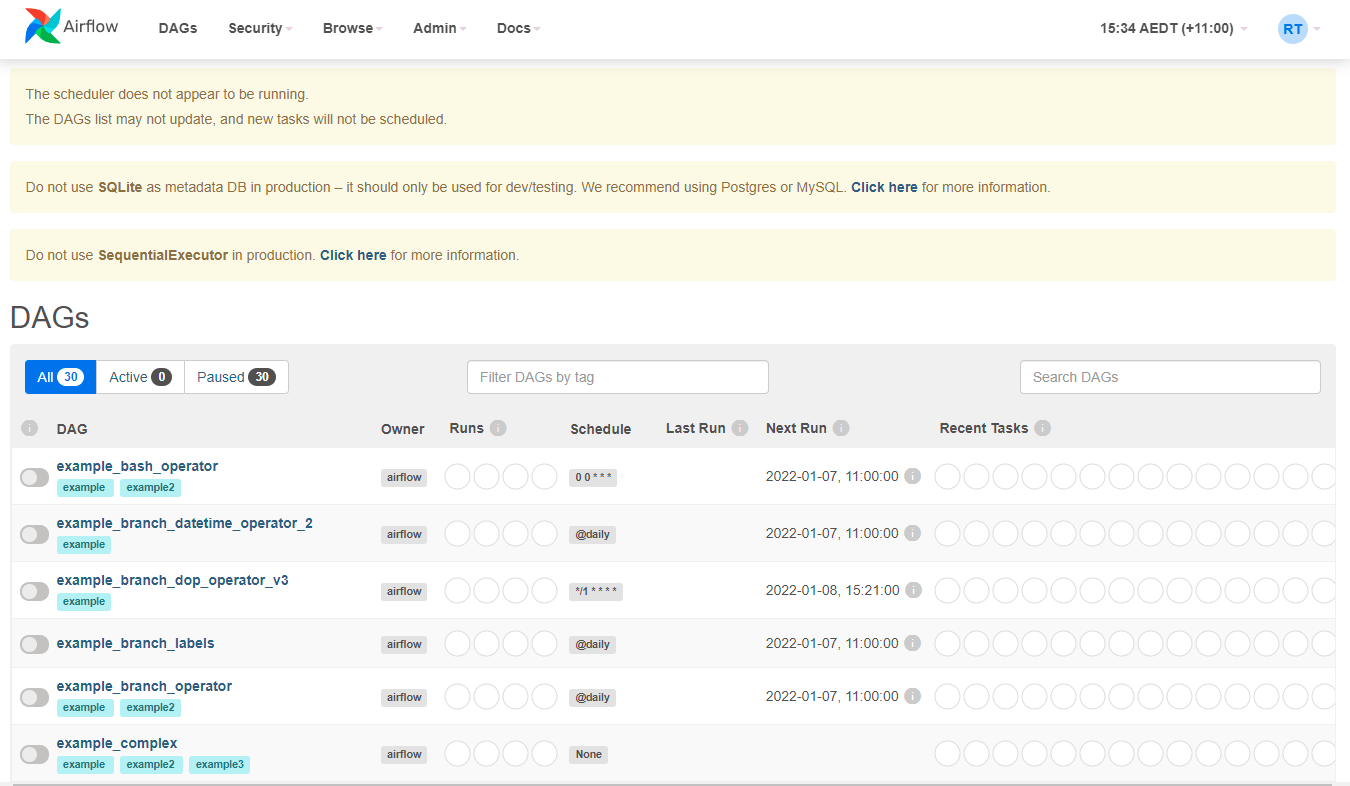

After login, the home page will show all the default example DAGs:
Start scheduler service
If you want to enable scheduling service, run the following command in a different Bash/WSL window:
airflow scheduler

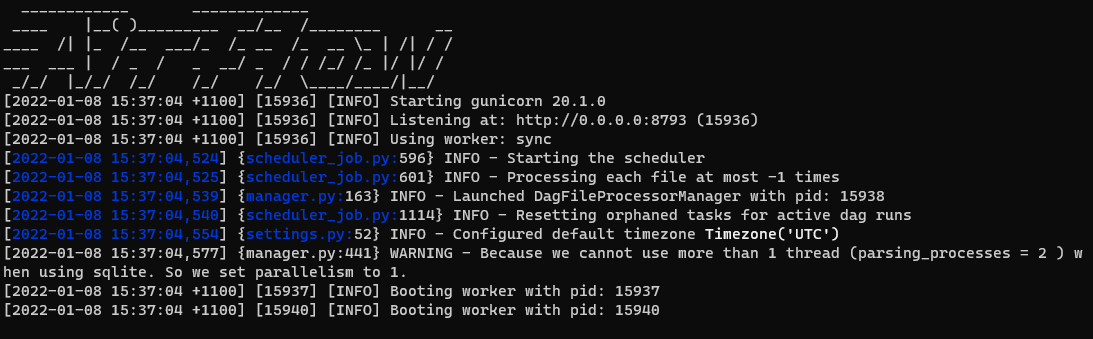

The command will print out these texts:
You can stop the service by press Ctrl + C.
Run example workflow
We can run the built-in example workflow using airflow tasks run command:
airflow tasks runusage: airflow tasks run [-h] [--cfg-path CFG_PATH] [--error-file ERROR_FILE] [-f] [-A] [-i] [-I] [-N] [-l] [-m][-p PICKLE] [--pool POOL] [--ship-dag] [-S SUBDIR]dag_id task_id execution_date_or_run_id
Run this command:
airflow tasks run example_bash_operator runme_0 2022-01-08

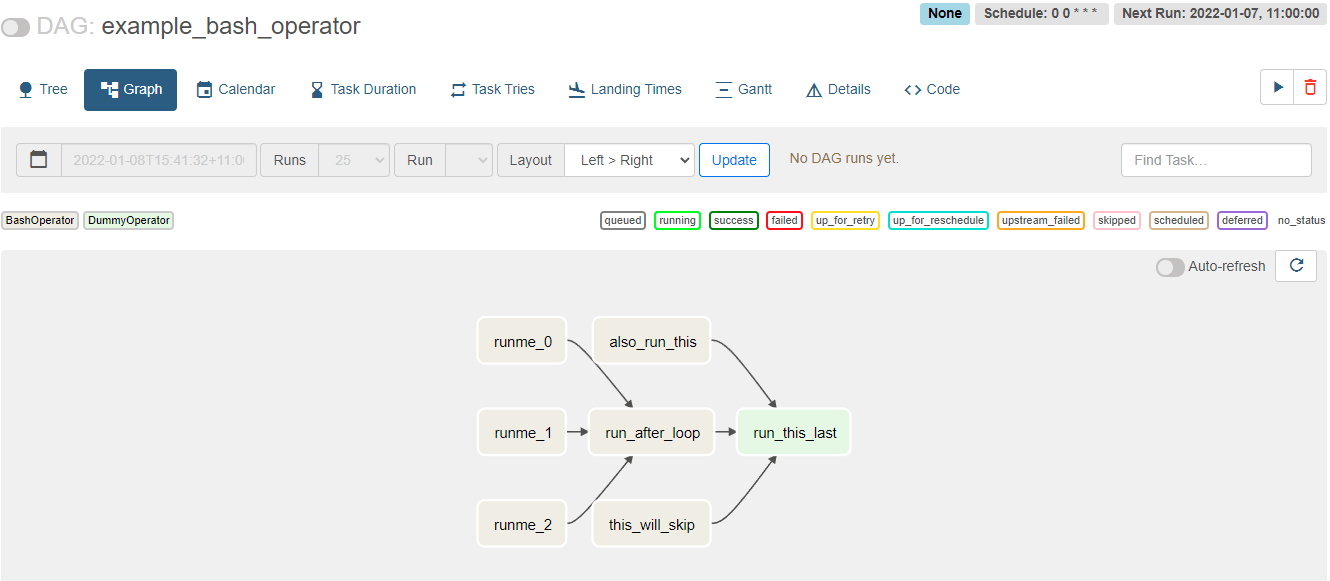

The command will trigger task runme_0in DAG example_bash_operator:
Rou can also backfill jobs for historical dates:
airflow dags backfill --start-date "2022-01-01" --end-date 2022-01-05 example_bash_operator
